Specifications
| Specification | Value |
|---|---|
| Model | FBL06 |
| Length | 4 meter |
| Working pressure | 15 bar |
| Nominal bore | 3/8 inch |
| Weight | Approx 1kg |
| Quick connectors | Walther-Prazision 007 male / Walther-Prazision 007 female |
| Color | Blue |
| Required BA case | 3.80.3316 |
Single line FBL06 4mtr for BA Box3.80.3316
HP hose for the connection from the HP bank to the BA case 3.80.3316
Questions?
If you have any questions let us know
Product description

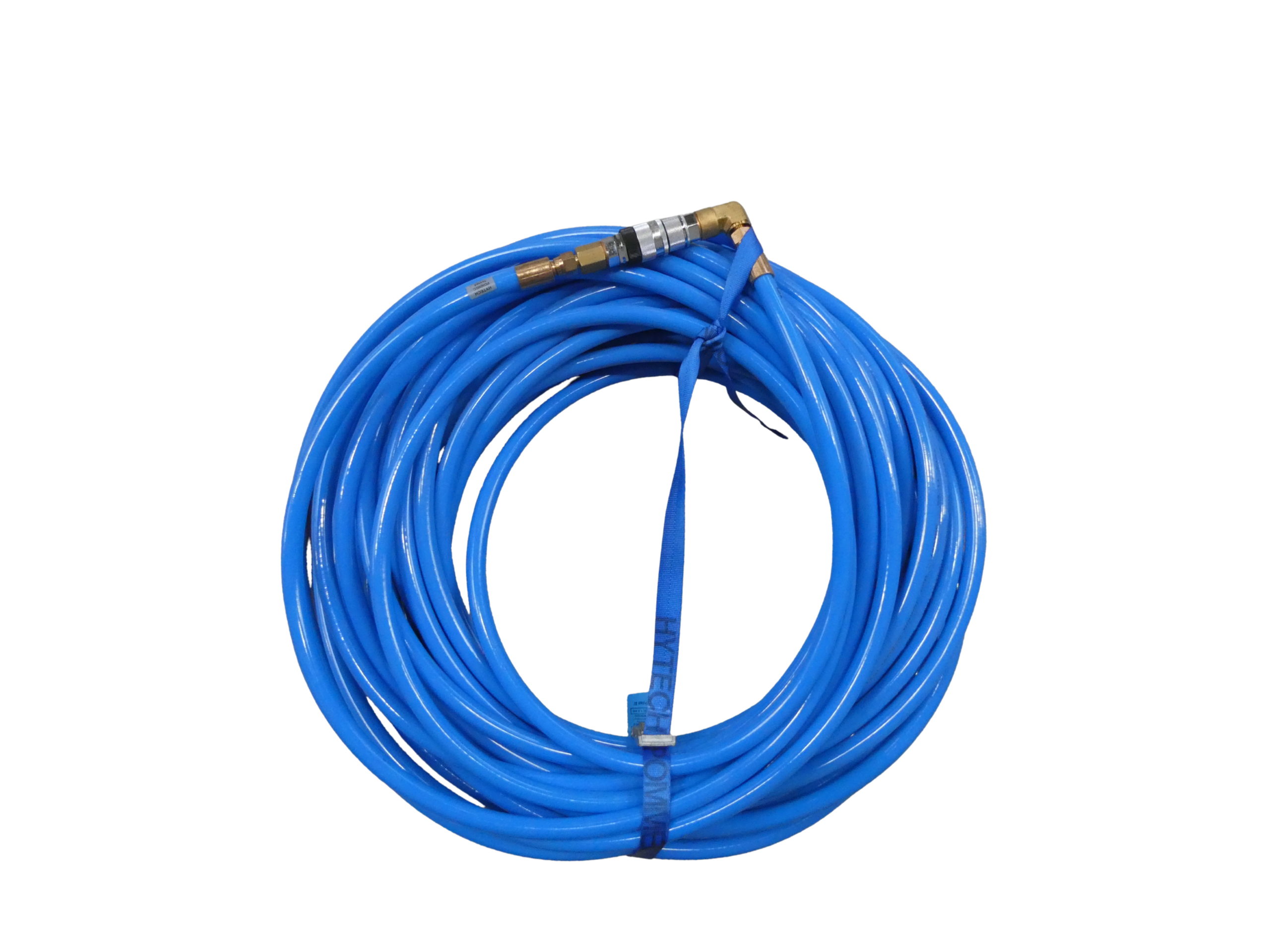

FBL06 4 m Single Line
The FBL06 4 m single line features Walther-Prazision quick connectors and is designed for use with the Life Support BA Panel for inert entry. It functions as the interconnecting line between Panel A and Panel B.
Connections and operating details
The line has a working pressure of 15 bar and a nominal bore of 3/8 inch. It features a Walther-Prazision 007 male quick connector and a Walther-Prazision 007 female quick connector.
The blue line weighs approximately 1 kg. A BA case is required for this product. The BA box has part number 3.80.3316.
Features
- 4 m single line
- Designed for use with the Life Support BA Panel for inert entry
- Interconnects Panel A and Panel B
- Walther-Prazision 007 male quick connector
- Walther-Prazision 007 female quick connector
- Blue
