Air freight IATA-Compliant Decompression Chamber Ø1500mm

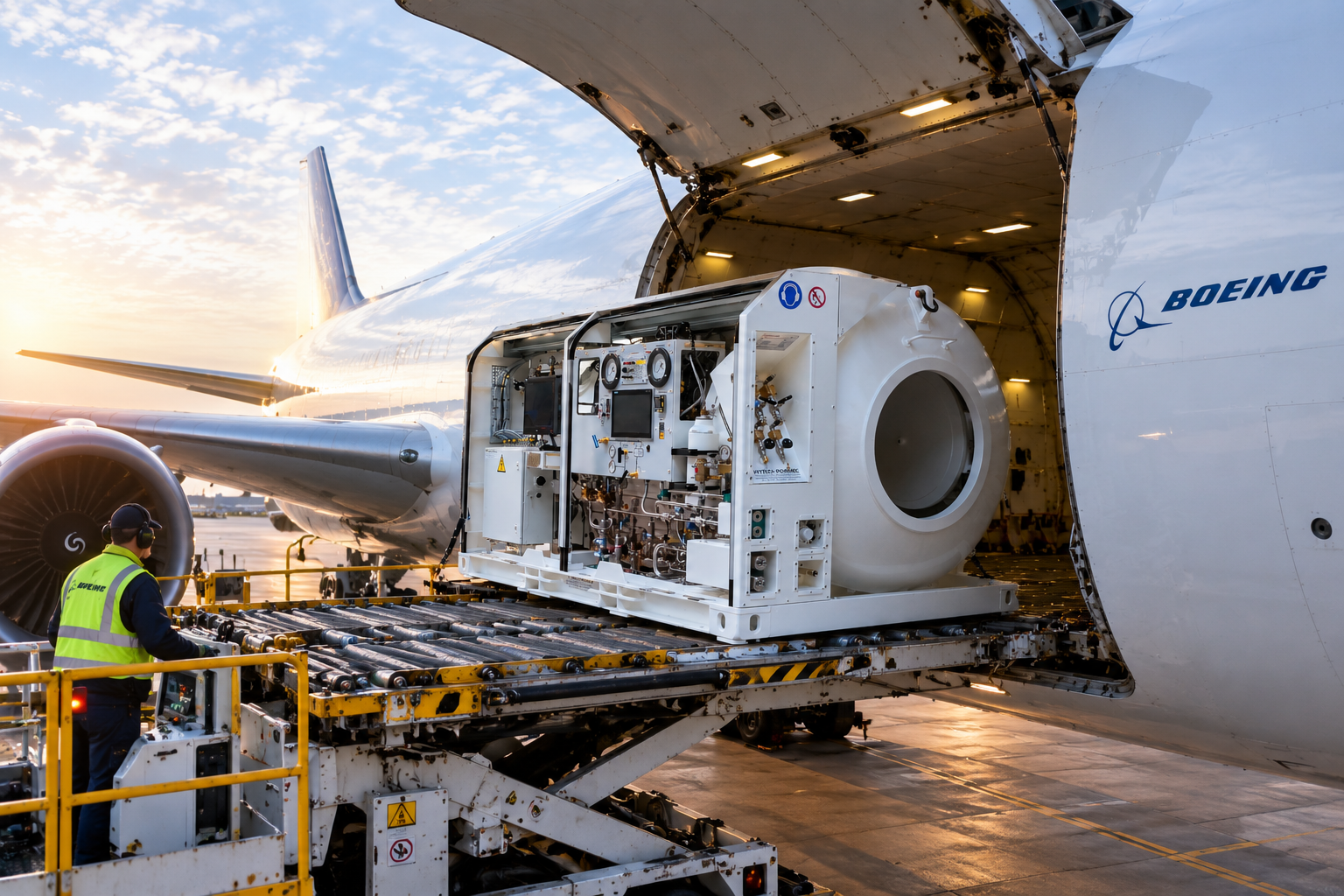

This IATA-Compliant Decompression Chamber will be suitable to be transported by the following aircrafts, A300, A310, B747, B767, B777, A340. The maximum dimensions will be within the limits of an IATA AAP container.

Hytech-Pommec decompression chambers are built for fast action.
The pressurisation system is over-dimensioned for structural performance and better flow.
This well-priced basic-level decompression chamber offers fantastic value. Its comprehensive standard scope of supply assures that it can be operated comfortably and safely.
Moreover, the decompression chamber is easy to control and to maintain.
At Hytech-Pommec, we feel decompression chambers should be simple to operate,
to avoid possible errors or losing precious time.

Product description

IATA-Compliant Decompression Chamber Ø 1500 mm

The Hytech-Pommec 1500 mm diameter IATA-compliant decompression chamber has been specifically developed to maximize deployability while simplifying global transportation. Designed in accordance with IATA cargo dimensional requirements, the chamber can be transported efficiently by air, enabling rapid mobilization and deployment wherever it is needed.

The decompression chamber is equipped with a range of proven and reliable subsystems, ensuring safe, efficient, and dependable operation. Its robust construction and high-quality components deliver outstanding performance in demanding operational environments.

Despite its compact and transport-friendly design, no compromises have been made in terms of quality, safety, or functionality. Built to the high standards synonymous with Hytech-Pommec, this decompression chamber combines exceptional reliability with excellent transportability.

Key Features:

IATA-compliant dimensions for efficient air transportation
Chamber diameter: 1500 mm
Rapid worldwide deployment capability
Equipped with proven and reliable subsystems
Robust construction for demanding operational environments
High-quality Hytech-Pommec engineering and reliability
Ideal for offshore, diving, and maritime applications

Fast transport, rapid deployment, uncompromising quality.

Specifications

DDC Ø1500:

Max. operation depth	50 msw / 5.13 bar.
Design pressure	5.65 bar.
Hydrostatic test pressure	8.1 bar.
Depth gauges	Dual scale, 0.25% accuracy.
Overall length	Approx 3600 mm.
Diameter of supply lock	Approx 230 mm.
Viewport free diameter	Approx 150 mm.
Door diameter	Approx 700 mm.
Capacity	Max 4 occupants (3 in the main chamber 1 in the entrance lock.
Empty weight	Approx 3750 Kg.
